stagedtrees

stagedtrees Build Status R-CMD-check Coverage status

Citation

To cite stagedtrees in publications use:

Carli F, Leonelli M, Riccomagno E, Varando G (2022). “The R Package stagedtrees for Structural Learning of Stratified Staged Trees.” Journal of Statistical Software, 102(6), 1-30. doi: 10.18637/jss.v102.i06 (URL: https://doi.org/10.18637/jss.v102.i06).

@Article{,
    title = {The {R} Package {stagedtrees} for Structural Learning of Stratified Staged Trees},
    author = {Federico Carli and Manuele Leonelli and Eva Riccomagno and Gherardo Varando},
    journal = {Journal of Statistical Software},
    year = {2022},
    volume = {102},
    number = {6},
    pages = {1--30},
    doi = {10.18637/jss.v102.i06},
  }

Overview

stagedtrees is a package that implements staged event trees, a probability model for categorical random variables.

Installation

#stable version from CRAN
install.packages("stagedtrees")

#development version from github
# install.packages("devtools")
devtools::install_github("gherardovarando/stagedtrees")

Usage

library("stagedtrees")

With the stagedtrees package it is possible to fit (stratified) staged event trees to data, use them to compute probabilities, make predictions, visualize and compare different models.

Creating the model

A staged event tree object (sevt class) can be initialized as the full (saturated) or as the fully independent model with, respectively, the functions indep and full. It is possible to build a staged event tree from data stored in a data.frame or a table object.

# Load the PhDArticles data
data("Titanic")

# define order of variables
order <- c("Sex", "Age",  "Class", "Survived")

# Independence model
mod_indep <- indep(Titanic, order)
mod_indep
#> Staged event tree (fitted)
#> Sex[2] -> Age[2] -> Class[4] -> Survived[2]
#> 'log Lik.' -5773.349 (df=7)

# Full (saturated) model
mod_full <- full(Titanic, order)
mod_full
#> Staged event tree (fitted)
#> Sex[2] -> Age[2] -> Class[4] -> Survived[2]
#> 'log Lik.' -5151.517 (df=30)
Structural zeros and unobserved situations

By default staged trees object are defined assuming structural zeros in the contingency tables. This is implemented by joining all unobserved situations in particular stages (named by default "UNOBSERVED") which are, by default, ignored by other methods and functions (see the ignore argument in ?stages_bhc or ?plot.sevt).

## there are no observations for Sex=Male (Female), Age = Child, Class = Crew
get_stage(mod_full, c("Male", "Child", "Crew"))
#> [1] "UNOBSERVED"

## and obviously
prob(mod_full, c(Age = "CHild", CLass = "Crew"))
#> [1] 0
Initialize a model without structural zeros

It is possible to initialize a staged tree without structural zeros by setting the argument join_unobserved=FALSE. In that case, it can be useful to set lambda > 0 to avoid problems with probabilities on unobserved situations.

mod_full0 <- full(Titanic, join_unobserved = FALSE, lambda = 1)

Model selection

stagedtrees implements methods to perform automatic model selection. All methods can be initialized from an arbitrary staged event tree object.

Score methods

This methods perform optimization for a given score using different heuristics.

mod1 <- stages_hc(mod_indep)
mod1
#> Staged event tree (fitted)
#> Sex[2] -> Age[2] -> Class[4] -> Survived[2]
#> 'log Lik.' -5161.242 (df=18)
mod2 <- stages_bhc(mod_full)
mod2
#> Staged event tree (fitted)
#> Sex[2] -> Age[2] -> Class[4] -> Survived[2]
#> 'log Lik.' -5157.759 (df=19)
mod3 <- stages_fbhc(mod_full, score = function(x) -BIC(x))
mod3
#> Staged event tree (fitted)
#> Sex[2] -> Age[2] -> Class[4] -> Survived[2]
#> 'log Lik.' -5164.708 (df=18)
Clustering methods
mod4 <- stages_bj(mod_full)
mod4
#> Staged event tree (fitted)
#> Sex[2] -> Age[2] -> Class[4] -> Survived[2]
#> 'log Lik.' -5170.769 (df=21)
mod5 <- stages_hclust(mod_full,
                    k = 2,
                    distance = "totvar",
                   method = "mcquitty")
mod5
#> Staged event tree (fitted)
#> Sex[2] -> Age[2] -> Class[4] -> Survived[2]
#> 'log Lik.' -5241.629 (df=12)
mod6 <- stages_kmeans(mod_full,
                    k = 2,
                   algorithm = "Hartigan-Wong")
mod6
#> Staged event tree (fitted)
#> Sex[2] -> Age[2] -> Class[4] -> Survived[2]
#> 'log Lik.' -5241.629 (df=12)

Combining model selections with |> (or %>%)

The new native pipe operator |> (or the one from the magrittr package) can be used to combine various model selection algorithms.

model <- Titanic |> full(lambda = 1) |> stages_hclust() |> stages_hc()

## extract a sub_tree and join two stages
small_model <- model |> subtree(path = c("Crew"))  |>
              join_stages("Survived", "3", "7")

Probabilities, predictions and sampling

Marginal probabilities

Obtain marginal (or conditionals) probabilities with the prob function.

# estimated probability of c(Sex = "Male", Class = "1st")
# using different models
prob(mod_indep, c(Sex = "Male", Class = "1st"))
#> [1] 0.1161289
prob(mod3, c(Sex = "Male", Class = "1st"))
#> [1] 0.08110992

Or for a data.frame of observations:

obs <- expand.grid(mod_full$tree[c(1,3)])
p <- prob(mod2, obs)
cbind(obs, P = p)
#>      Sex Class          P
#> 1   Male   1st 0.08110992
#> 2 Female   1st 0.06655023
#> 3   Male   2nd 0.08273137
#> 4 Female   2nd 0.04675523
#> 5   Male   3rd 0.23097925
#> 6 Female   3rd 0.08978404
#> 7   Male  Crew 0.39164016
#> 8 Female  Crew 0.01044980

Conditional probabilities can be obtained via the conditional_on argument.

prob(mod3, c(Sex = "Male", Class = "1st"),
     conditional_on = c(Survived = "Yes"))
#> [1] 0.09876727
Predictions

A staged event tree object can be used to make predictions with the predict method. The class variable can be specified, otherwise the first variable (root) in the tree will be used.

## check accuracy over the Titanic data
titanic_df <- as.data.frame(Titanic)
predicted <- predict(mod3, class = "Survived", newdata = titanic_df)
table(predicted, titanic_df$Survived)
#>
#> predicted No Yes
#>       No   7   7
#>       Yes  7   7

Conditional probabilities (or log-) can be obtained setting prob = TRUE:

## obtain estimated conditional probabilities in mod3
predict(mod3, newdata = titanic_df[1:3,], prob = TRUE)
#>       Male   Female
#> 1 0.587156 0.412844
#> 2 0.587156 0.412844
#> 3 0.587156 0.412844
Sampling
sample_from(mod4, 5)
#>      Sex   Age Class Survived
#> 1   Male Adult   2nd       No
#> 2 Female Adult   3rd       No
#> 3 Female Adult   2nd       No
#> 4   Male Adult   2nd       No
#> 5   Male Adult  Crew       No

Explore the model

Model info
# stages
stages(mod1, "Age")
#> [1] "3" "1"

# summary
summary(mod1)
#> Call:
#> stages_hc(mod_indep)
#> lambda:  0
#> Stages:
#>   Variable:  Sex
#>  stage npaths sample.size      Male    Female
#>      1      0        2201 0.7864607 0.2135393
#>   ------------
#>   Variable:  Age
#>  stage npaths sample.size      Child     Adult
#>      3      1        1731 0.03697285 0.9630272
#>      1      1         470 0.09574468 0.9042553
#>   ------------
#>   Variable:  Class
#>  stage npaths sample.size        1st       2nd       3rd       Crew
#>      1      2         109 0.05504587 0.2201835 0.7247706 0.00000000
#>      3      1        1667 0.10497900 0.1007798 0.2771446 0.51709658
#>      4      1         425 0.33882353 0.2188235 0.3882353 0.05411765
#>   ------------
#>   Variable:  Survived
#>       stage npaths sample.size         No       Yes
#>           4      5         174 0.02298851 0.9770115
#>           1      2         910 0.77472527 0.2252747
#>  UNOBSERVED      2           0         NA        NA
#>           6      3         371 0.60377358 0.3962264
#>           7      2         630 0.85873016 0.1412698
#>           5      2         116 0.13793103 0.8620690
#>   ------------

# confidence intervals
confint(mod1, parm = "Age")
#>                  2.5 %    97.5 %
#> Age=Child|3 0.02808370 0.0458620
#> Age=Adult|3 0.95413800 0.9719163
#> Age=Child|1 0.06914343 0.1223459
#> Age=Adult|1 0.87765407 0.9308566
Plot

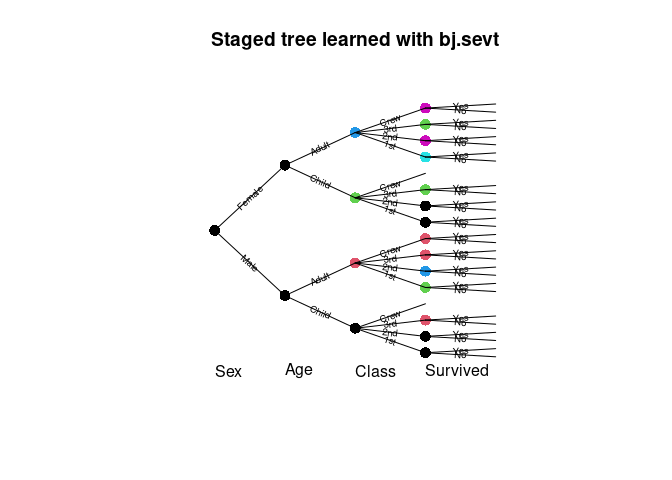

plot(mod4, main = "Staged tree learned with bj.sevt",
     cex_label_edges = 0.6, cex_nodes = 1.5)

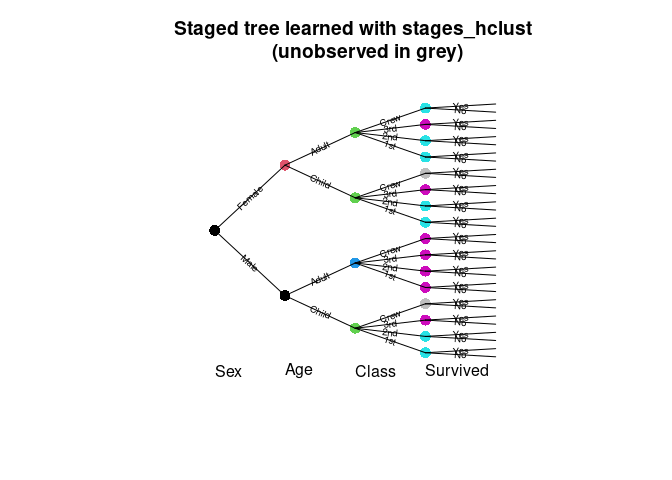

By default stages associated with the unobserved situations are not plotted, if the model has been created with join_unobserved = TRUE. But we can plot also the unobserved stages in a specific color.

plot(stndnaming(mod5, uniq = TRUE),
     main = "Staged tree learned with stages_hclust
     (unobserved in grey)",
     ignore = FALSE, ## do not ignore stages
     col = function(stages) ifelse(stages=="UNOBSERVED", "grey", stages),
     cex_label_edges = 0.6, cex_nodes = 1.5)

Barplot

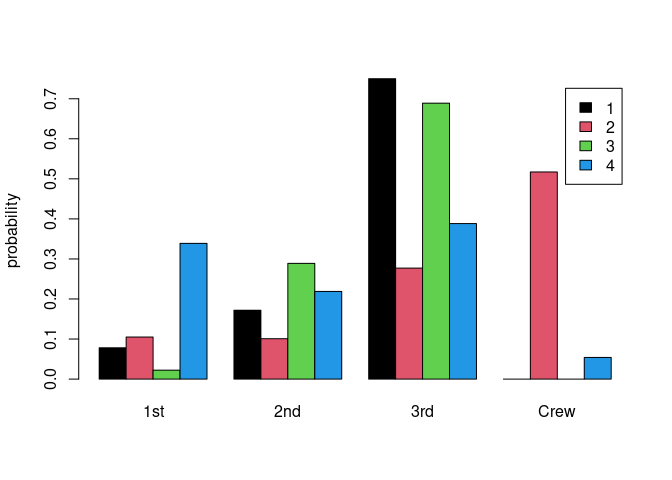

The method barplot.sevt creates a bar plot for the conditional probabilities of a variable.

barplot(mod4, "Class", legend.text = TRUE)

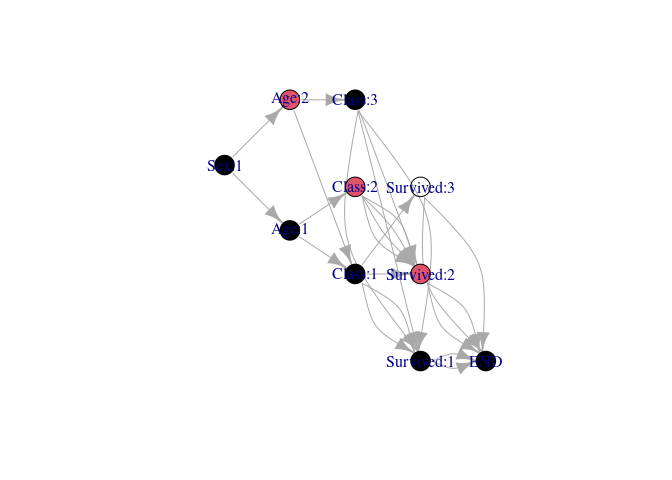

CEG plots

Plotting CEG requires the igraph package.

plot(ceg(mod5))

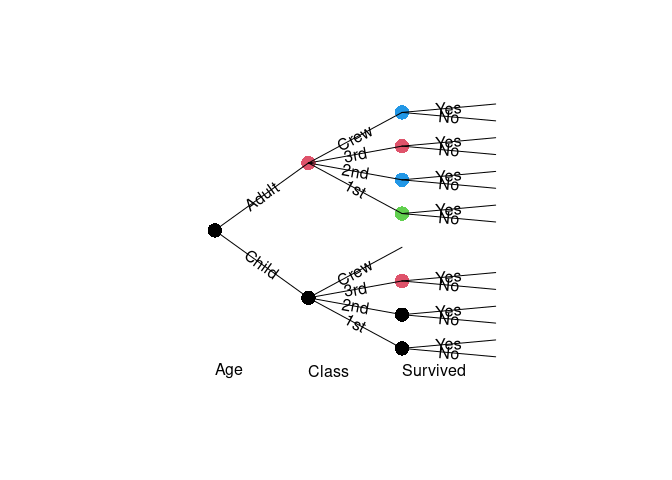

Subtrees

From a staged evnt tree a subtree can be extracted, the resulting model is ar staged event tree in the remaining variables.

sub <- subtree(mod4, c("Female"))
plot(sub)

Comparing models

Compare stages structure
compare_stages(mod1, mod4)
#> [1] FALSE

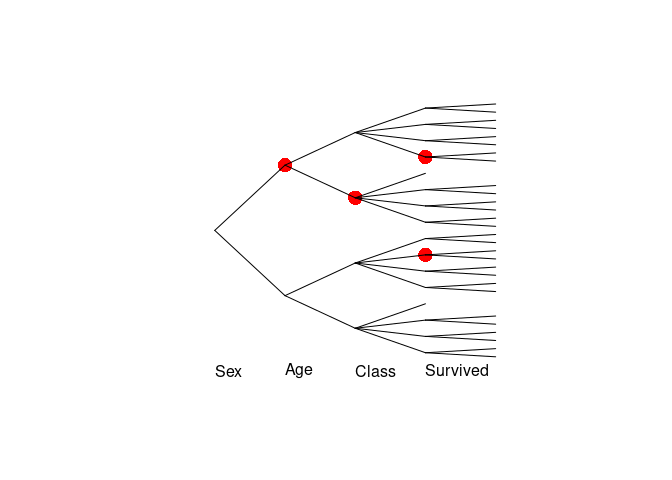

compare_stages(mod1, mod4, method = "hamming", plot = TRUE,
             cex_label_nodes = 0, cex_label_edges = 0)

#> [1] FALSE

hamming_stages(mod1, mod4)
#> [1] 4

difftree <- compare_stages(mod1, mod4, method = "stages", plot = FALSE,
             return_tree = TRUE)

difftree$Married
#> NULL
Penalized log-likelihood.
BIC(mod_indep, mod_full, mod1, mod2, mod3, mod4, mod5)
#>           df      BIC
#> mod_indep  7 11600.57
#> mod_full  30 10533.93
#> mod1      18 10461.02
#> mod2      19 10461.76
#> mod3      18 10467.96
#> mod4      21 10503.17
#> mod5      12 10575.62
Likelihood-ratio test
mod1a <- join_stages(mod1, "Class", "3", "4")
lr_test(mod1a, mod1)
#> Likelihood-ratio test
#>
#> Sex[2] -> Age[2] -> Class[4] -> Survived[2]
#> Model 1: mod1a
#> Model 2: mod1
#>   #Df  LogLik Df  Chisq Pr(>Chisq)
#> 1  15 -5359.6
#> 2  18 -5161.2  3 396.65  < 2.2e-16 ***
#> ---
#> Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
